IMES PRESSURE SENSORS:
Nowadays sensors and measuring systems for analyzing cylinder pressure and injection pressure are of great importance in the field of combustion engines. Engine manufacturers are required to fulfil numerous international safety standards and even the engines in the field must be optimally adjusted as they have to fulfil numerous environmental regulations. Optimal adjusted engines do not only comply with different regulations, they also offer great potential savings e.g. less fuel and oil consumption, less wear and tear, more durable engines.

IMES sensors convince with their long term accuracy with minimal signal drift over long periods. Designed for a minimum of 16,000 operating hours they enable the acquisition of highly accurate,
processable data during periodic checks and during continuous monitoring of combustion pressure.

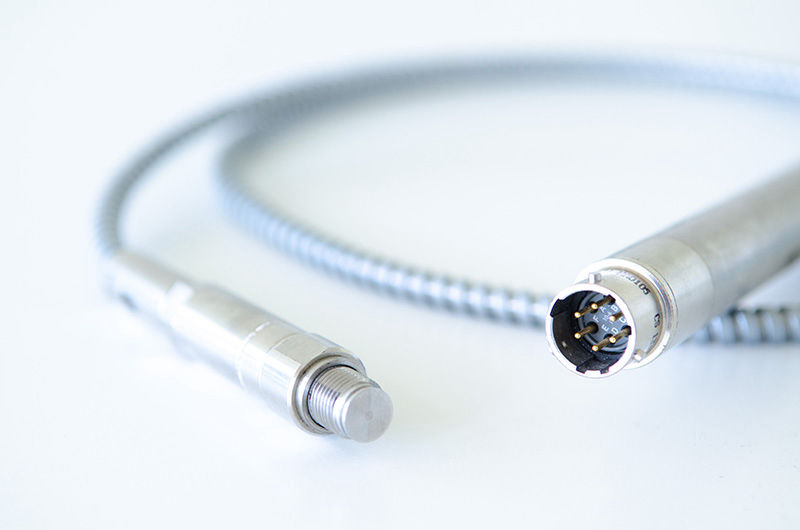

CPS-01 & CPS-01CA [4-stroke]

On-line combustion control sensor for diesel and gas engines.
Range: 0-300 Bar [Pmax 800-1600 Bar] M10x1. Connector: Plug DIN M12 or MIL-C-26482.

CPS-01 CPS-01CA

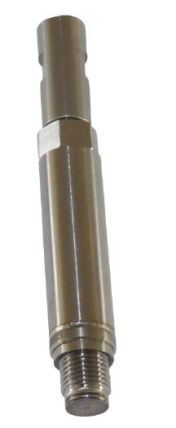

FPS-01 & FPS-01CA [2-stroke]

Front membrane pressure sensor for continuous measurement of combustion pressure. Perfectly suitable for cylinder balancing and performance evaluation.
Range: 0-300 Bar [Pmax 400 Bar] M10x1. Connector: Plug DIN M12 or MIL-C-26482.

FPS-01 FPS-01CA

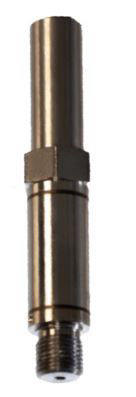

HTT-04/HTT-04CA [4-stroke]

On-line combustion control sensor for diesel and gas engines.
Range: 0-300 Bar [Pmax 800-1600 Bar] M14x1,25.
Connector: Plug DIN M12 or MIL-C-26482.

HTT-04 HTT-04CA

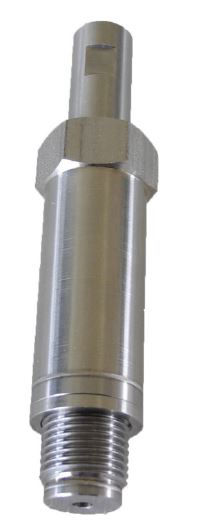

HTT-06/HTT-06CA [4-stroke]

On-line combustion control sensor for diesel and gas engines with event storing.
Range: 0-300 Bar [Pmax 800/1200 Bar] M10x1. Connector: Plug DIN M12 or MIL-C-26482.

HTT-06 HTT-06CA

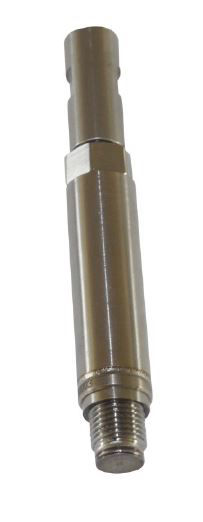

TCS-01/TCS-01CA-PMI [2-stroke]

Front membrane pressure sensor for continuous measurement of combustion pressure incl. event storing. Perfectly suitable for cylinder balancing and performance evaluation.
Range: 0-300/250 Bar [Pmax 400 Bar] M10x1. Connector: Plug DIN M12 or Harting.

TCS-01 TCS-01CA

Protection cover

For signal conditioning unit (SCU).

PROTECTION COVER

International standards

Marine Type Approval is a mandatory requirement for voyage and safety critical devices installed on a ship. Of course IMES sensors have received Marine Type Approval from all significant international classification
societies such as Bureau Veritas, DNV GL, ABS, Lloyd’s Register, Class NK or China Classification Society.
